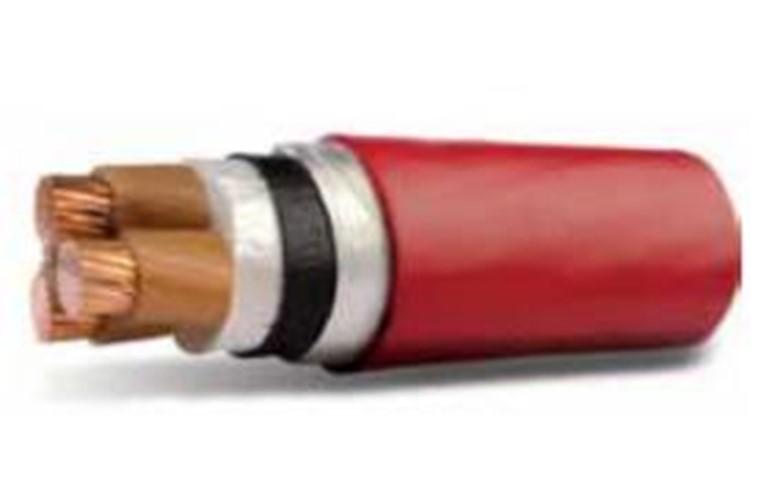

Three-Core Cables, with Stranded Circular Copper or Aluminum Conductors. XLPE insulated and PVC sheathed.

Description

These cables have a stranded circular compacted copper or aluminum conductor and a semi-conducting layer as a conductor screen and are XLPE insulated. Semi-conducting layer as a non-metallic insulation screen and copper tape or wire as a metallic insulation screen. Cores are assembled together with non-hygroscopic polypropylene fillers and wrapped with binder tape and PVC sheathed. Meets IEC 60502.

Application

Suitable for direct burial or for installation on trays or in ducts.

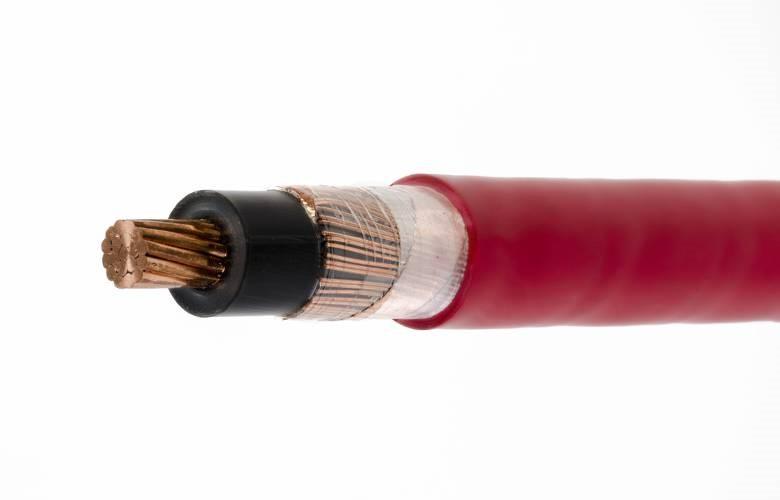

Single-core cables with stranded circular copper or aluminum conductors, XLPE insulated, aluminum tape armored, and PVC sheathed.

Description
Stranded circular compacted copper or aluminum conductor. Semi-conducting layer as conductor screen, XLPE insulated. Semi-conducting layer as a non-metallic insulation screen, copper tape or wire as a metallic insulation screen, covered with a layer of PVC compound as a bedding layer, aluminum tape armored, and PVC sheath. Meets IEC 60502.

Application
For direct burial or for installation on trays or in ducts.

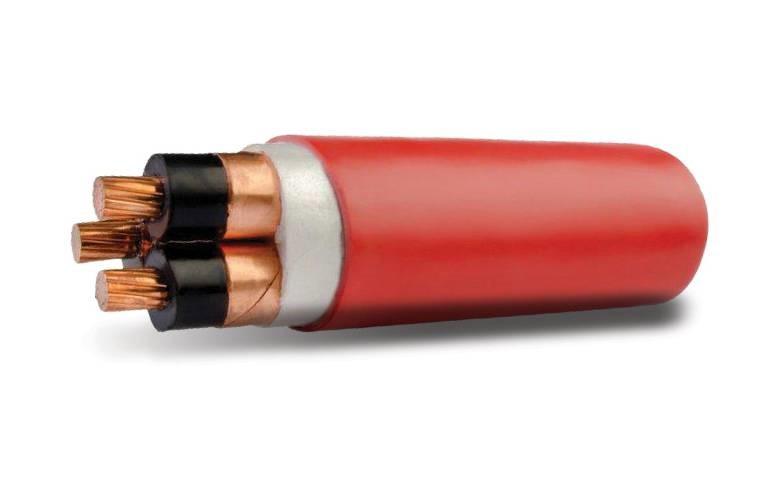

Three-core cable, with stranded circular copper or aluminum conductors, XLPE insulated, steel tape armored, and PVC sheathed.

Description

Stranded circular compacted copper or aluminum conductor, semi-conducting layer as conductor screen, XLPE insulated, semi-conducting layer as non-metallic insulation screen, copper tape or wire as metallic insulation screen. Cores are assembled together with non-hygroscopic polypropylene fillers and wrapped with binder tape, covered with a layer of PVC compound as bedding, armored with steel tape, and PVC sheathed. Meets IEC 60502.

Application

Suitable for direct burial or for installation on trays or in ducts.

Three-core cable, with stranded circular copper or aluminum conductors, XLPE insulated, steel tape armored, and PVC sheathed.

Description

Stranded circular compacted copper or aluminum conductor, semi-conducting layer as conductor screen, XLPE insulated, semi-conducting layer as non-metallic insulation screen, copper tape or wire as metallic insulation screen. Cores are assembled together with non-hygroscopic polypropylene fillers and wrapped with binder tape, covered with a layer of PVC compound as bedding, armored with steel tape, and PVC sheathed. Meets IEC 60502.

Application

Suitable for direct burial or for installation on trays or in ducts.

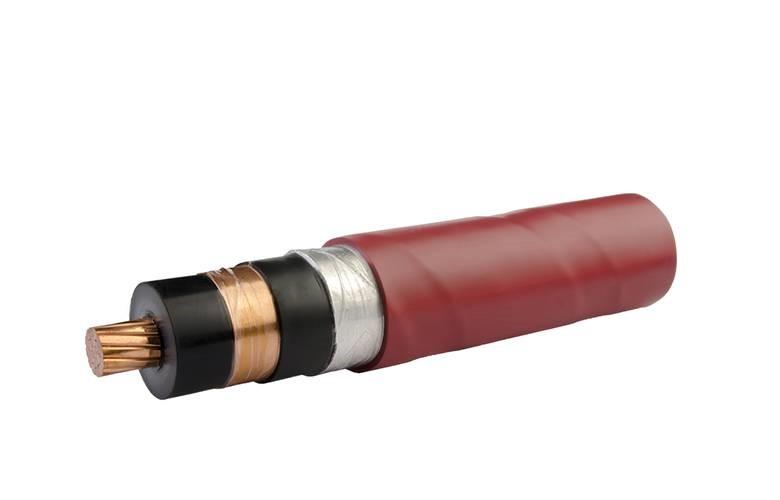

 Single-core cables with stranded circular copper or aluminum conductors, XLPE insulated, aluminum wire armored, and PVC sheathed.

Description

Stranded circular compacted copper or aluminum conductor, with a semi-conducting layer as a conductor screen, XLPE insulated, a semi-conducting layer as a non-metallic insulation screen, copper tape or wire as a metallic insulation screen, covered with a layer of PVC compound as a bedding layer, aluminum wire armored, and a PVC sheath. Meets IEC 60502 and BS 6622.

Application

These cables are generally suitable for direct burial or for installation on trays or in ducts.

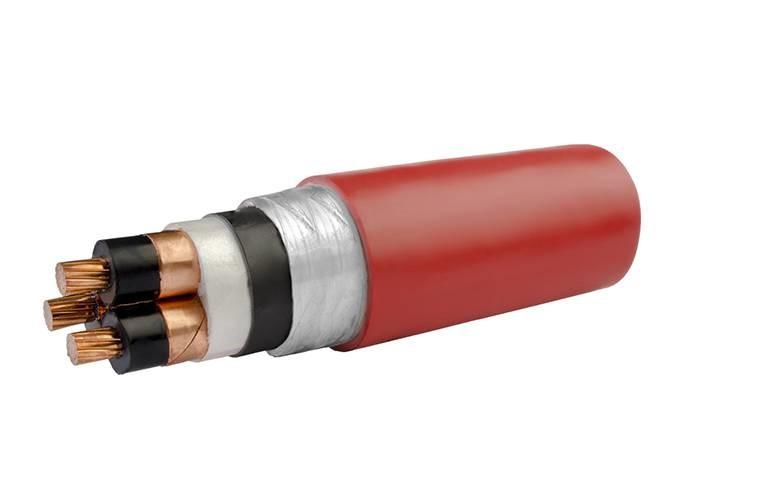

Three-core cable with stranded circular copper or aluminum conductors, XLPE insulated, steel wire armored, and PVC sheathed.

Description

Stranded circular compacted copper or aluminum conductor with a semi-conducting layer as a conductor screen, XLPE insulated, semi-conducting layer as a non-metallic insulation screen, and copper tape or wire as a metallic insulation screen. Cores are assembled together with non-hygroscopic polypropylene fillers and wrapped with binder tape, covered with a layer of PVC compound as bedding, steel wire armored, and PVC sheathed. Meets IEC 60502 or BS 6622.

Application

Suitable for direct burial or for installation on trays or in ducts.
